WEFix

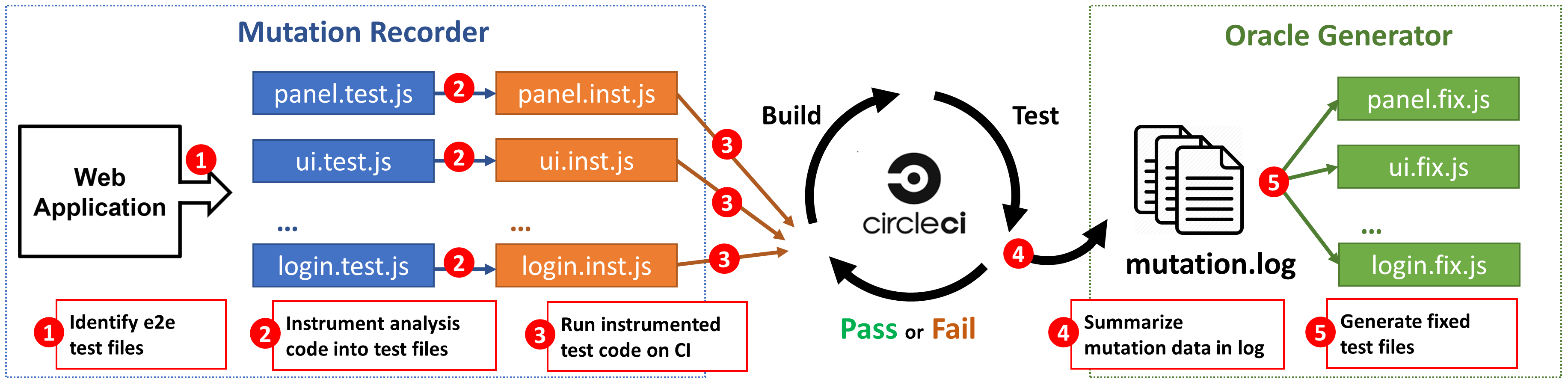

WEFix is an automated tool that can fix concurrency flakiness in web e2e testing. It inserts analysis code into the original e2e test files, and after collecting runtime mutation information, it can generate appropriate explicit waits after command statements to solve flakiness. The following graph shows the workflow of WEFix. WEFix is composed of two parts: Mutation Recorder and Oracle Generator.

WEFix Structure

We make our tool available on NPM, where Node.js users can easily download and integrate it into their web projects. Moreover, this tool includes a user-friendly UI panel to help developers fix web e2e flaky tests. The tool source code can be found on GitHub under the MIT licence.

Dataset

Web_e2e_repos_Dec_14_2021.xlsx

In the paper, we collected 100,000 top-star JavaScript repositories from GitHub using GitHub Search API. We filtered out 250 repos containing web e2e testing and stored them in this file. This data is collected on December 14th, 2021. Repositories are listed in descending order of star number. We identify e2e testing by searching e2e keywords in the repo’s package.json file. The matched e2e keywords of each repo are presented in the ‘‘e2e keyword’’ column.

Exp_repos.xlsx

This file contains the information of seven web application repositories used in our experiment. We picked them out from 250 repos because they have high stars and are easy to deploy. The “SHA” column shows the commit version we used.

How to reproduce the experiment result

  1. Clone the repository from GitHub. Make sure Node.js is installed.
  2. Run npm install or yarn to install necessary dependencies for the project.
  3. Run npm install --save-dev wefix or yarn add --dev wefix to add our tool WEFix as the development dependency.
  4. Mannually remove all wait statements in all e2e test files. So that all concurrency flakiness is exposed.
  5. Run npx wefix -i or yarn wefix -i. WEFix will detect all e2e test files under current directory and instrument analysis code into them.
  6. Check the package.json file, and start build process using pre-defined npm command, such as npm run build.
  7. Start the application using pre-defined npm command, such as npm run start:app. The seven repos used in our paper will start a local server. Make sure you can visit its web page through localhost.
  8. Run the e2e testing using pre-defined npm command, such as npm run test:e2e. For Cypress, you need to add --config defaultCommandTimeout=0 parameter to disable its inherent auto-wait ability. After the testing process finish, a local file named mutation.log will be generated, which contains mutation information of each commands recorded on the fly.
  9. (Optional) Run npx wefix ui or yarn wefix ui. WEfix will start a web page on localhost as UI panel, where all the mutations are presented in order. This UI panel could help users better understand the DOM behavior during test runtime and fix the flakiness.
  10. Run npx wefix -f or yarn wefix -f. WEfix will take mutation.log as input to insert generated fix code into the original test files.
  11. Manually rerun fixed e2e tests ten times and check whether the flakiness disappeared.

Experiment Result

Exp_result.xlsx

In the paper, we apply WEFix on seven repos in Exp_repos.xlsx. The fix result and overhead breakdowns are shown in this table.
